Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BESTER
  • Model Number: BS033C-occupancy sensor
  • Usage: led lighting
  • Theory: pir sensor switch
  • Output: Switching Transducer
  • Power Source:: 110 -240V/AC
  • Detection Range: 180°
  • stype: pir sensor switch
  • Detection Distance: 9m max (<24℃)
  • Ambient Light: < 20LUX
  • Working Temperature: -20~+40℃
  • Time-Delay:: min: 10sec±3sec max: 7min±2min
  • Installation Height: 1m~1.8m
  • Rated Load: 1200W/220V (incandescent lamp) 300W/220V (energy-saving lamp)
  • Detection Motion Speed:: 0.6~1.5m/s

Packaging & Delivery

Packaging Details: Occupancy/Vacancy Sensor, Single Pole/Multi Location and 180 Deg,Coverage Sensor, White packing: each unit in a color box, 120pcs in a carton, Measure:45x41x40cm, G.W/N.W: 10.8/16.38kgs
Delivery Detail: Shipped in 3 days after payment

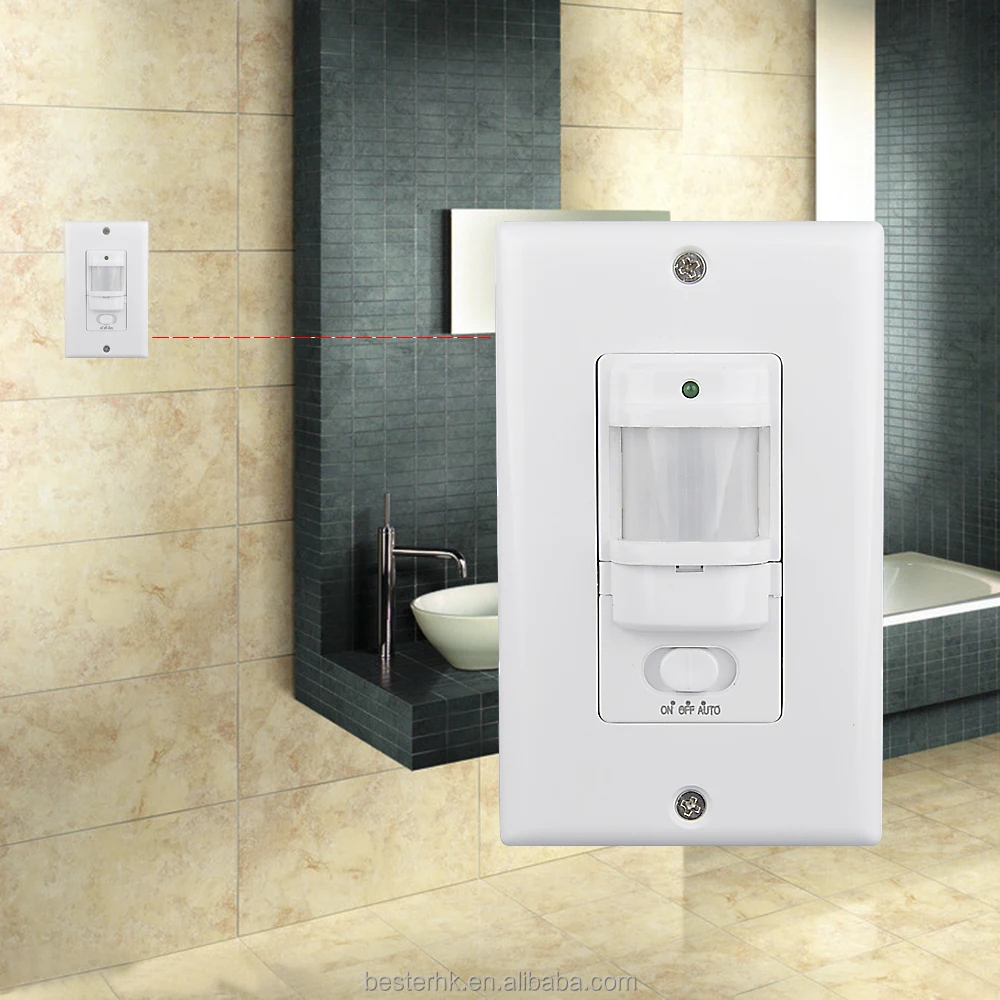

110V Automatic PIR Infrared Body Motion Sensor Switch for all Home LED light



Welcome to use Time delay pir sensor switch(BS033C)!

 Noted: This product only works in the dusk or evening when the ambient light is less than 20 LUX or no any light in the surrounding environment.





Instruction

 The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install.



SPECIFICATION





Power Source: 110 -240V/AC   Detection Range:180°
Power Frequency: 50/60Hz Working Temperature: -20°C~+40°C
Ambient Light:: < 20LUX  Working Humidity: <93%RH
Time-Delay:  min: 10sec±3sec  Installation Height: 2.2-4m
   Max: 7min±2min   Power Consumption: 0.45W (work)  0.1W (static)

Rated Load: 1200W (incandescent lamp)

                          300W (energy-saving lamp)

 Detection Motion Speed: 0.6 ~1.5m/s





FUNCTION





  • It can only work in the ambient light less than 20LUX (dark).
  • Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).
  • Time-delay adjustment: It can be set according to the consumer’s desire. The minimum time is 10sec±3sec. The maximum is 7min±2min.
  • The switch: The switch is “ON”,“OFF”,“AUTO”.
  • Hot-selling Mini Pir sensor switch




INSTALLATION: (see the diagram)

  • Shut off the power.
  • Loosen the connection column on the bottom of sensor, plug the wire into connection hole, tighten the screws; unload the surface of sensor, connect the sensor into connection box.
  • Cross the installation screws into installation hole of sensor, aimed at the hole of connection box, tighten the screws, cover the surface of sensor.
  • Switch on the ower then test it.
  • 220V Pir motion sensor switch for led light








CONNECTION-WIRE DIAGRAM









TEST



  • Set the function switch to “ON”, turn the TIME knob anti-clockwise on the minimum after taking the board-face off.
  • Switch on the power, the lamp should be on;
  • Set the function switch to “OFF”, the lamp should be off immediately, all functions should be in “stop” state.
  • Set the function switch to “AUTO”,  after 30sec later, it enter into working position, the lamp will be turned on after receiving the inductor signal. Under no inductor signal condition, the lamp should be off within 5~10sec, the lamp should be on again after 5sec.



NOTES:

  • Electrician or experienced human can install it.
  • The unrest objects can’t be regarded the installation basis-face.
  • There aren’t hinder or unrest objects effecting detection in front of the detection window.
  • Avoid installing it near temperature alteration zones, for example: air condition, central heating etc.
  • Please don’t open the case for your safety if you find the hitch after installation.
  • If there are some difference between instruction and the function the product has, please give priority to product and sorry not to inform you additionally
  • Ceiling motion sensor switch



Application














Certification







Production Line:



About us & Why shop us



Your satisfaction is our goal. We stand behind at the products that we sell. Do not hesitate to contact us anytime before and after your purchase, we believe great deals will be opened by good communication. Fast Dispatching High Feedback score You Buy What You See Manufacturer Warranty



We provide FOC (free of charge)design services depends on what your requirements. Also welcome use our existing products,it will be save the delivey time for you







Quality control:



(1)We test each item before shipping to ensure they are in good condition.



(2) As a experienced supplier we package goods in carton box , which would prevent your items from some unexpected damages efficiently during delivery.



High sensitive ceiling motion sensor switch





FAQ

Q1. Are you a manufacturer or a trading company?

  • We are a manufacturer, providing OEM & ODM service.



Q2.what' is the MOQ for order?



  • 50-100PCS is available, some items are in stock and trial order is accepted.



Q3.Does it have light sensor?



  • Yes, you can adjust it by yourself.



Q4:Does the delay time can be adjusted?



  • it can adjust from 10s -7minutes(even more we can customize it).



Q5:What is the delivery?



  • Some items are in stock, the delivery time is 1-2 workdays.
  • 1-2 workdays for sample, 15-20 workdays for mass production,depends on quantity.

Q6:What cerdificates your products have?
  • CE&ROHS.
